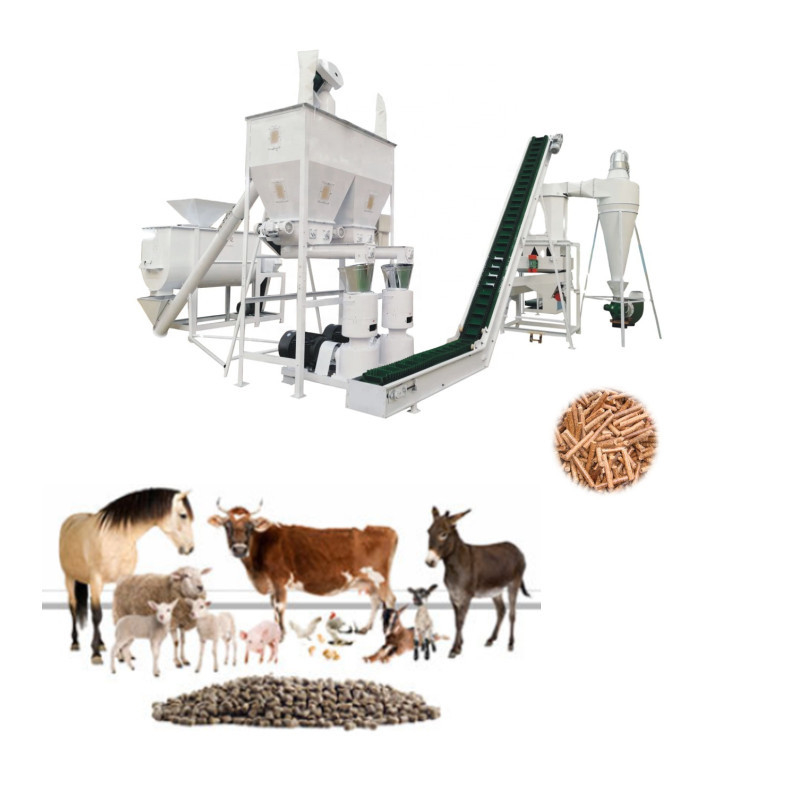

1-2TPH ring die chicken feed pellet production line for baby/infant chick young chicken grown chicken
Working principle :
Feed pellet machine , based one the principle of circular motion , the template of pressure roller are made of high-quality alloy steel after special treatment , drive the pressure roller to rotate m the material is gelatinized at high temperature between the pressure roller and the template , the protein solidification and denaturation , and the particles are discharged from the die hole under the pressure roller extrusion , and the particles made are sent out of the machine through the dumpling tray .
This pelllet line including :
| Horizontal type 1-2TPH ring die chicken feed pellet production line for baby/infant chick young chicken grown chicken | ||||
| 1.Crushing section : | ||||
| 101 . hammer mill | SFSP60 | 1 | 22KW |
The rotor of the pulverizer is corrected by dynamic balance, equipped with NSK bearings, and the hammer blades are weighed by the electronic scale and matched into groups to ensure that the weight of the hammer blades in each group is consistent. With its own fan, after increasing the blades, the output of the pulverizer is increased. |
|
102. Bag filter |
￠200*16 |
1 | / |
Equipped with mechanical flannel, diameter 200mm, length 1500mm, with ash bucket below. |
| 103. Hopper for mill | 1 | / | ||
| 2. Mixing section : | ||||
| 201. Mixer |
HJJ80 |
1 | 7.5kw |
Capacity: 1000kg/batch, brand bearing, double row chain drive Mixing time: 180-240s Blades and chassis ensure extremely low retention to prevent cross-contamination of the material. The shaft end is sealed by an oil seal to ensure that the material is leak-free |
| 3. Granulation cooling section : | ||||
| 301. screw conveyor |
￠130 |
2 |
1.5kw |
Equal diameter equal pitch blades, high speed, high output |
| 302. |
1m³ |
1 | / |
The A3 board is made with agrille |
|
303. Feeder The conditioner Pellet machine |
HKJ25 |
1 |
22.00+1.10 +0.75 =23.85kw |
The machine uses inverted triangular strong belt drive,with large torque,smooth transmission,low High-quality bearings ensure smooth and reliable performance The addition of large rollers directly improves production capacity and combined with cylindrical roller bearings quickly and easily adjusts the gap between the ring mold and the roller The machine is equipped with a diameter of 3.0 carbon steel ring mold,customers can according to their own needs to purchase additional needs of the ring |
| 304.
Elevator |
XTDTG30/15 |
1 | 0.75kw |
The work is stable and reliable, easy to repair and clean Equipped with an observation port Three layers of polyester plastic belt Steel plate head wheel,durable |
| 305.
Cooler |
NKSL-3 |
1 |
0.75+0.75+ 0.20=1.70kw |
The falling direction of the partcle material and the reverse movement of the cold air ensure that the product is gradually cooled from the bottom up,which results in better cooling results Punch-type screen,the wind effect is better Octagonal case to ensure tjat the material is free of residue |
| 306.
Cyclone |
￠700
|
1 | / |
The A3 board is made with agrille |
| 307. Fan |
4-72 |
1 |
5.50kw |
The wind leaves are dynamically balanced and started in direct connection with a single machine |
| 308. Roller crusher |
SSGL15*80 |
1 |
4.00kw |
Metal sloping toothed wire rollers toothed wire rollers,heat-treated at high temperatures to ensure service life Suitable for chicken opening material,large and small adjustable The feed flow is adjustable to ensure productivity |
|
4. spraying, cooling, screening and packaging section : |
||||
| 401. Z-type belt conveyor |
PD40 |
1 |
1.50kw |
RV reducer direct drive, PV skirt belt, to ensure that the material leakage. Smooth operation and no noise |
|
402. Rotatry virbrating sieve |
SFJH80*2 |
1 |
1.50kw |
The newly designed type grading sieve runs smoothly Two -layer wooden frame,three-layer screen,to ensure that large pieces of material,finished material,powder separation clean With elastic nylon support plate,torque is large and service life is long |
| 403. Z-type belt conveyor |
PD40 |
1 | 1.50kw | RV reducer direct drive, PV skirt belt, to ensure that the material leakage. Smooth operation and no noise |
| 404. Finshed warehouse |
0.5m³ |
1 | / |
The A3 board is made with agrille |
|
405.Auto-pack scales Charter flights |
LCS50 |
1 |
2.20X2= 4.40kw |
Unique shock-proof device ensures measurement accuracy,fast packaging and speeds up to 220packs/h External adjustment function,easy to repair The main components are imported and have a long service life |
| 406. Conveyor belt | 1 |
1.10kw |
PV belt drive ensures long service life Direct drive with RV gearbox |
|
|
5: Electrical control center |
||||
| 501.Central control distribution cabinet | 1 |
For MCC cabinet, Chint electric appliance is used as the main electrical appliance, red wave is used as the button, step-down start is used for motors above 15kw, and process flow simulation screen is used for the panel of central control cabinet, which is convenient to use and solves Misoperation. |
||
|
6. Auxiliary equipments: |
||||
| 601. Air compressor | 1 | 7.5kw | ||
|
602. Steam generator |
0.10T, 0.7Mpa |
1 | ||
| Total power : 84.3kw | ||||
