Nguồn gốc:
Trung Quốc
Hàng hiệu:
ZHONGDEBAO
Chứng nhận:
CE， SGS, BV
Số mô hình:
EWPM
Băng hình
Băng hình

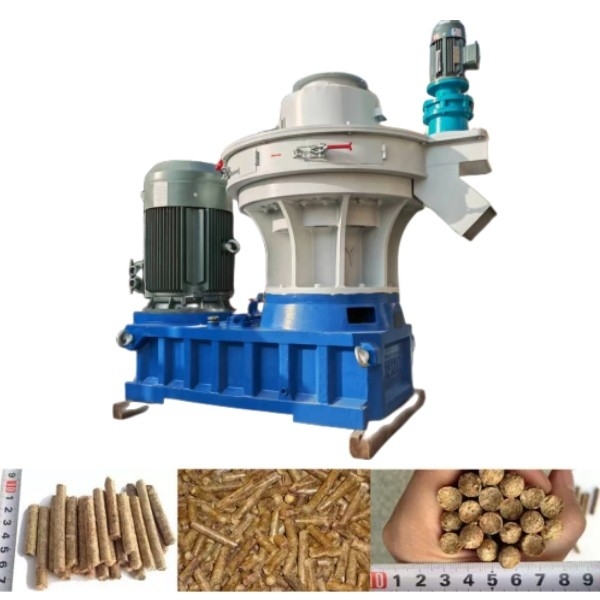

Biomass pellet machine is a pellet fuel molding machine that uses various branches, wood, wood chips, corn stalks, rice straw, wood bran, wood powder, sawdust and other agricultural waste as raw materials. The pellets produced by this machine can be used in fireplaces, boilers, and biomass power plants.
The pellet machine we manufacture adopts the mature vertical ring die pellet machine in the market. Compared with the flat die, this model has great advantages, mainly in four points:
1. The vertical direction of the mold. Vertical feeding, the mold is placed flat, the mouth is upward, and it enters the granulation mold directly from top to bottom. The specific gravity of the sawdust is very light, straight up and down, after the sawdust enters, it is rotated and thrown around by the pressure wheel, and the particles are evenly pressed.
2. The mold is installed statically and vertically, the machine is easy to fix, and the machine runs smoothly;
3. Equipment stability: The vertical ring die granulator divides the material by the rotation of the pressure wheel, which will not produce heavy material or vibration

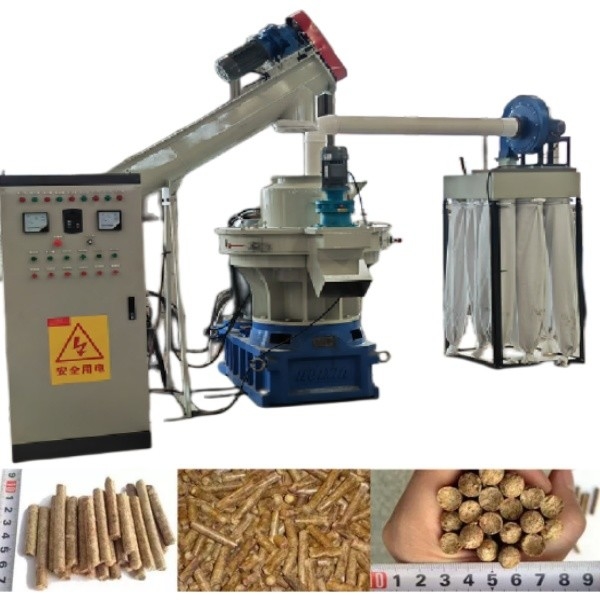

4. Machine structure: The vertical ring die granulator is open upward, which is easy to dissipate heat. In addition, it is equipped with a set of air-cooled cloth bag for dust removal and automatic refueling. the
5. Equipment operation: The vertical ring die pellet machine has a strong enlarged shaft and a large cast steel bearing seat. Its large bearing does not bear any pressure, is not easy to break, and has a long service life.
6. The mold has two layers, which can be used up and down, reducing costs and increasing efficiency
| Model | Motor(KW) | Ring die inner diameter(MM) | Capacity(T/H) |
|---|---|---|---|
| EW450 | 55 | 450 | 0.8-1 |
| EW560 | 90 | 560 | 1.2-1.5 |
| EW600 | 110 | 600 | 1.8-2 |
| EW600A | 132 | 600 | 2-2.5 |
| EW700A | 160 | 700 | 2.5-3 |
| EW850 | 250 | 850 | 3-4 |
Suitable raw material:
Suitable for all kinds of wood chips, sawdust, wood bran, straw, bagasse, palm shell and other raw materials, with strong applicability. Vertical ring die pellet machine has a wide range of sources of raw materials, such as sawdust, shavings, cup skin, sanding powder, waste wood, branch wood produced in wood processing and wood-based panel production; various straws produced after harvesting crops; other types of combustible biomass as raw materials, no need to add any adhesive, through equipment processing, can produce biomass pellet fuel.
We provide comprehensive technical support and service for wood pellet machines. Our experienced technical team can provide you with the following services:
Troubleshooting and Repair of Wood Pellet Machines
Provide technical advice and support
Operation and maintenance of wood pellet machine
If you have any questions about wood pellet machines, please contact us and our team of technicians will be happy to assist you.
We use high-strength packaging materials and advanced packaging technology to ensure that the Wood Pellet Mill is safely and securely delivered to customers. Our packaging process includes:
