500 Kg Per Hour Flat Die Wood Pellet Production Line With 6/8 Mm Die Plate
Product Description
The wood pellet machine production line is developed by our company to establish an industrialized production line for biomass production. The complete set of equipment for wood pellet machine mainly includes: pulverizer, dryer, granulator, conveyor, cooling machine, packaging machine. The production of wood pellets consists of raw materials, crushing, drying, granulation, cooling, and finished product packaging. Every step of each equipment has strict operating specifications and quality requirements to ensure product quality.
Biomass/Wood Pellet Production Line is an integrated pelletizing system for the production of biomass pellets from various kinds of raw materials, such as wood chips, sawdust, rice husk, etc. It is characterized by its high automation and efficiency with a variety of automatic packing machine, a feeder power of 1.5-2.2kw, a main motor power of 90-160kw and a final pellet bulk density of500kg/m3. This biomass pelletizing line is suitable for a wide range of materials and provides high-quality pellets that can be used in various ways. It is easy to operate and maintain, and it also has a low energy consumption. This Biomass/Wood Pellet Production Line is an ideal solution for those looking to produce high-quality biomass pellets.

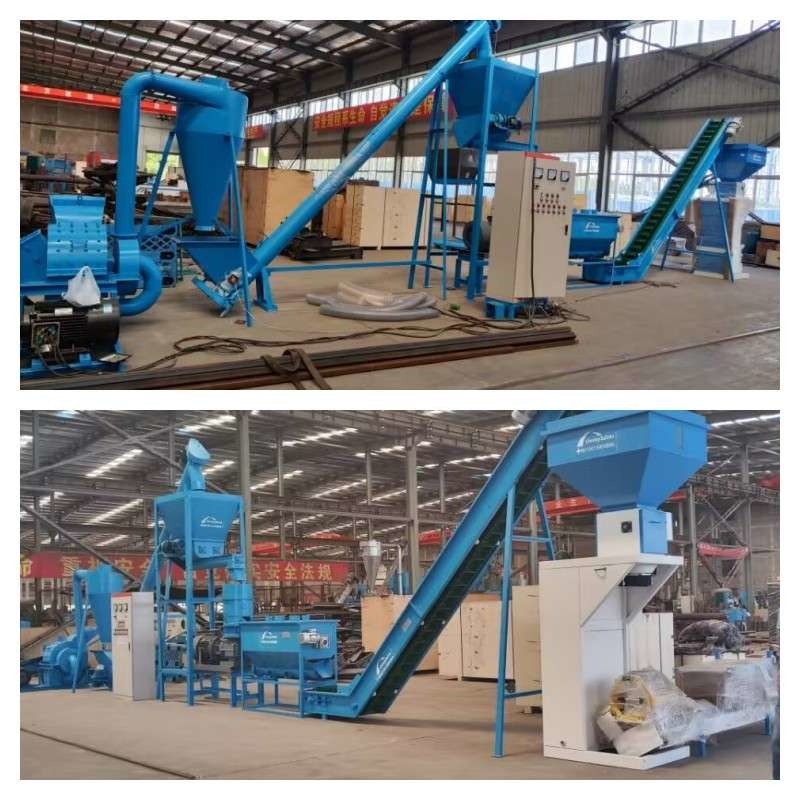

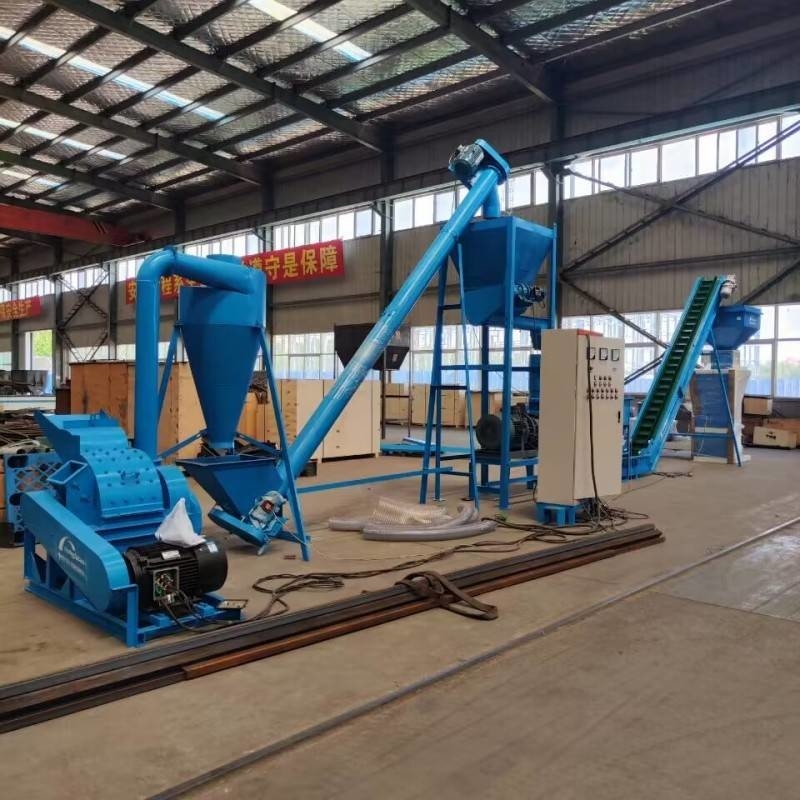

The whole biomass fuel pellet production line includes: log receiving and slicing system - crushing system - drying system - pelletizing system - cooling system - screening system - automatic packaging system
Technical Parameters:
| No. | Item | Model | Qty. | Power(kw) | |
| Wood Crusher syetem | 1 | Wood Crusher and hammer mill Machine | TFS500B | 1 | 11kw |
| Granulation system | 2 |
Screw Feeder weight :250 kg |
LS220 | 1 | 4+0.55 |
| 3 |
Stock Bin 1 m3 weight :250kg |
/ | 1 | / | |
| 4 | Feeder | LS160 | 1 | 0.75 | |
| 5 |
Pellet Machine capacity : 400-600kg/h size : 1630*620*1400mm Weight : 1100kg |
ZLSP420R | 1 | 37 | |
| Cooling system | 6 |
Cooling machine 1900*880*1000mm 1050*650*1165mm |
LQSF50 | 1 | 5.15(0.75+2.2*2) |
| Conveyor packaging | 7 | Conveyor 2 | QB380 | 1 | 2.2 |
| 8 |
Packing Machine ||||| |
BZJ50 | 1 | 1.26 | |
| Electronic control system | 9 | Electrical Control Cabine | / | 1 | / |
Applications
1. The biofuel granulator can process various crop straws such as rice husks, cotton stalks, cottonseed husks, and weeds, and is a good feed machine;:
2. This kind of fuel pelletizing machine can also process wood chips, sawdust, firewood, shavings, wood scraps, bagasse and other waste materials, which can be solidified and formed into pellet fuel;
Output 500kg per hour exported to Chile
800-1000 kg per hour exported to Poland
Main equipment
Final Different Size Wood Pellet Product:
Our customers
packing and shipping :
